New » Kubota » KX121-3S 6-in-1 Blade Compact Excavator
Model Quick Search

Call for Price
(603) 756-3379

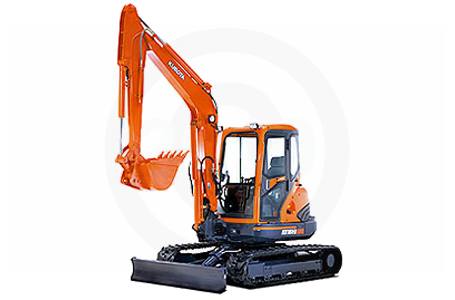

2010 Kubota KX121-3S 6-in-1 Blade Compact Excavator
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Model: Kubota V2203-M
    • Horsepower: 40.5 hp @ 2250 rpm
    • Displacement: 134.1 ci.
    • Fuel reservoir: 16.9 gal. (64 l)
    Dimension & Weight
    • Overall length: 16 ft 9 in.
    • Overall height (Canopy/Cab): 8 ft 3 in./ 8 ft 2 in.
    • Overall width in. 5 ft 10.9 in.
    • Min. ground clearance: 1 ft 1 in.
    • Type of ROPS / FOPS: Canopy or Cab
    • Operating weight (including operator's weight of 175lbs.; w/ rubber canopy): 9789 lbs, w/steel canopy: 9932 lbs.
    • Operating weight (including operator's weight of 175lbs.; w/ rubber cab): 9987 lbs, w/ steel cab: 10130 lbs.
    Working Range
    • Max. digging height: 17 ft 10 in.
    • Max. dumping height: 12 ft 9 in.
    • Max. digging radius @ ground: 18 ft 0 in.
    • Max. digging depth: 11 ft 6 in.
    • Max. vertical digging depth: 8 ft 2 in.
    • Max. digging radius: 18 ft 5 in.
    • Min. turning radius: (w/o swing) 6 ft 9 in, (w/swing) 5 ft 6 in.
    • Min tail turning radius: 4 ft 3 in.
    Hydraulic System
    • Pump capacity: 25.0 gpm
    • Auxiliary hydraulic flow rate: 15.9 gpm
    • Max. bucket breakout force: 8754 lbs.
    • Hydraulic oil (reservoir/system): 12.0 gal (46 L) / 19.8 gal. (75 L)
    Drive System
    • Traveling speed (low/high): 1.7 mph/ 3.1 mph
    • Max. traction force: 9867 lbs.
    • Under carriage shoe width: 13.8 in.
    • Canopy ground contact pressure: 4.83 psi (0.34 kgf/ccm)
    • Cab ground contact pressure: 4.98 psi (0.35 kgf/ccm)
    Swing System
    • Unit swing speed: 9.4 rpm
    • Boom swing angle ( L / R ): 80 degrees/50 degrees
    Blade
    • Blade width x height: 5 ft 10.9 in. x 15.16 in.
    • Max. lift above ground: 15.7 in.
    • Max. drop below ground: 15.9 in.
    • Max. swing angle: 25 deg. (left/right)
    • Max. tilt angle: 10 deg.
    Other Optional Implements
    • Bucket
    • Hydraulic breaker
    • Quick attach coupler
    • Quick attach bucket
    • Hydraulic thumb

    Specifications

    Engine
    Engine Type 134.1 ci.; Kubota V2203-M
    Engine Manufacturer Kubota V2203-M
    Horsepower 42.0 hp @ 2250 rpm
    Rated RPM 2250 rpm
    Fuel Capacity 16.9 gal. (64 l)
    General
    Length 200.4 in.
    Width 66.9 in.
    Height Canopy: 98.2 in.; Cab: 97.6 in.
    Weight Rubber canopy/Rubber cab (Including operator's weight of 175lbs.): 9063 lbs. (4110 kg)/9261 lbs. (4200 kg)
    Hydraulic System Pump capacity: 25.0 gpm; Auxiliary hydraulic flow rate: 15.9 gpm
    Boom Swing Left/Right: 80 degree/50 degree
    Max Dig Depth 138 in.
    Max Dump Height 153.1 in.
    Max Reach 215.6 in.
    Speed Low 1.7 mph; High: 3.1 mph

    Compare Models

    		 Print








    Year 2010
    Manufacturer Kubota
    Model KX121-3S 6-in-1 Blade Compact Excavator
    Style Compact
    Engine
    Engine Type 134.1 ci.; Kubota V2203-M
    Engine Manufacturer Kubota V2203-M
    Horsepower 42.0 hp @ 2250 rpm
    Rated RPM 2250 rpm
    Aspiration
    Fuel Capacity 16.9 gal. (64 l)
    General
    Length 200.4 in.
    Width 66.9 in.
    Height Canopy: 98.2 in.; Cab: 97.6 in.
    Weight Rubber canopy/Rubber cab (Including operators weight of 175lbs.): 9063 lbs. (4110 kg)/9261 lbs. (4200 kg)
    Hydraulic System Pump capacity: 25.0 gpm; Auxiliary hydraulic flow rate: 15.9 gpm
    Boom Swing Left/Right: 80 degree/50 degree
    Max Dig Depth 138 in.
    Max Dump Height 153.1 in.
    Max Reach 215.6 in.
    Speed Low 1.7 mph; High: 3.1 mph

    Current Promotions

    There are currently no promotions available for this product.
